Brokers

Updated 3 October 2026 · applies to 1.0.0 · Community and Commercial

Brokers, under Kafka in the sidebar, lists every broker of a cluster with its load, its disks and its effective configuration. It answers the questions you ask about a Kafka cluster when something feels wrong: is the load even, is one broker holding far more than its share, is every broker actually configured the way you think it is.

The list

Each broker shows its id, rack, address, on-disk size, and the number of partitions it holds and partitions it leads. Beside those last two is a signed skew percentage against the cluster average — the number that turns "broker 3 has 412 partitions" into "broker 3 is carrying 38% more than its share". Zero means balanced; the header explains the formula it used. With only one broker whose count is known there is nothing to compare against, and the percentage is left off. The remedies for a skew — moving partitions and electing preferred leaders — are on Reassignments and leader election.

Size is what a broker has written, not how full its disk is. The list's Size column is the on-disk size Kafka reports per broker. How much room is left is on the broker's own detail, under Logs ▸ Directories: each log directory's volume size, free space and share used, whether it is cordoned, and whether it is offline. A broker that does not report its volume says not reported rather than showing zero.

The active controller carries a badge, so the node that matters during a rebalance is identifiable at a glance rather than by cross-checking ids. On a KRaft cluster that is the leader of the metadata quorum. When the leader is a controller-only node — one that is not a broker and so has no row — no row carries the badge and the Controller tile names the node instead, saying it is not one of the listed brokers.

The Config drift tile compares every property's value across the serving brokers and reads None or Found. It leaves out the settings that are each broker's own and are meant to differ: its id and rack, the addresses it listens on and advertises, its log directories and its keystore. It needs two brokers to compare, so on a single broker it shows a dash with needs 2+ brokers; when a broker did not return its configuration it shows a dash counting those brokers, rather than comparing what it could not read.

The Version tile, the FENCED badge on a broker the controller has fenced, and unregistering a broker that is gone are described on Metadata quorum and features, with the cluster's metadata quorum and feature levels.

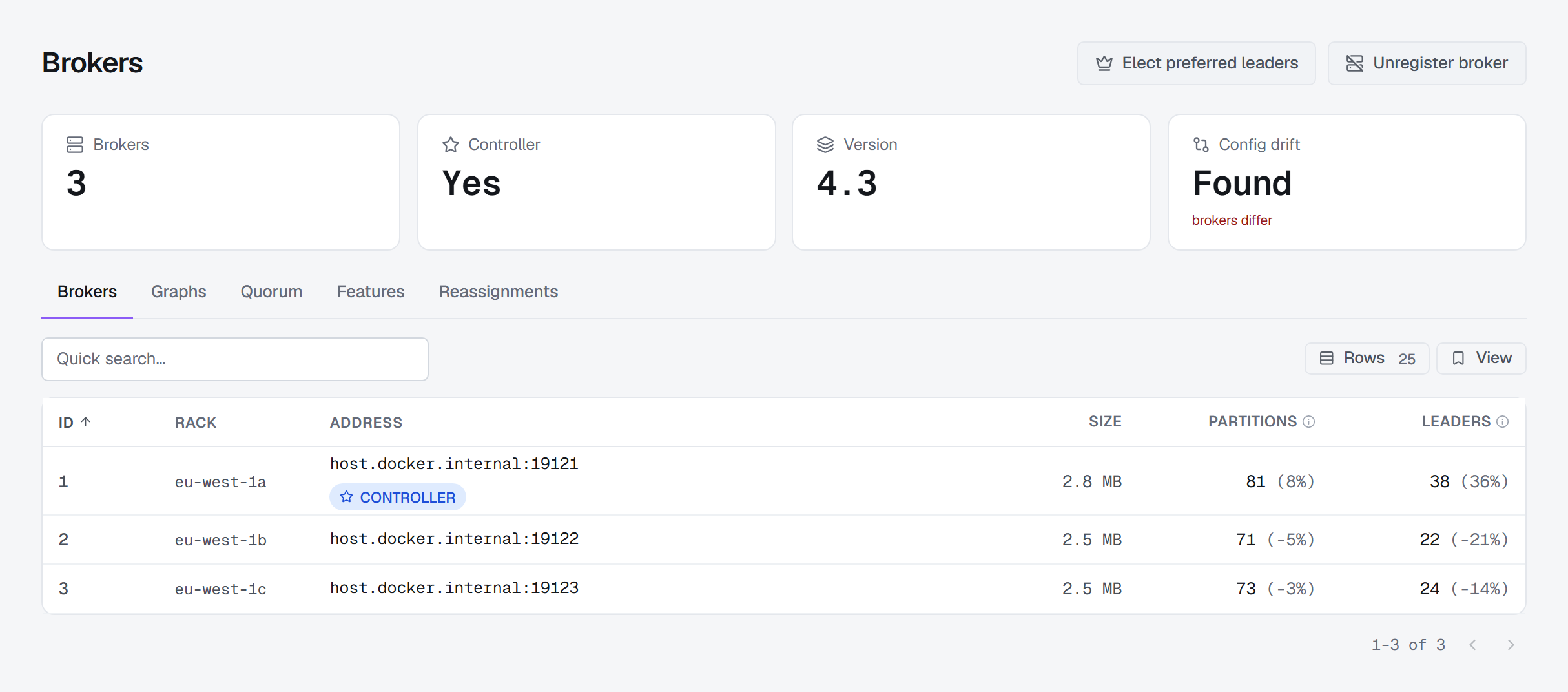

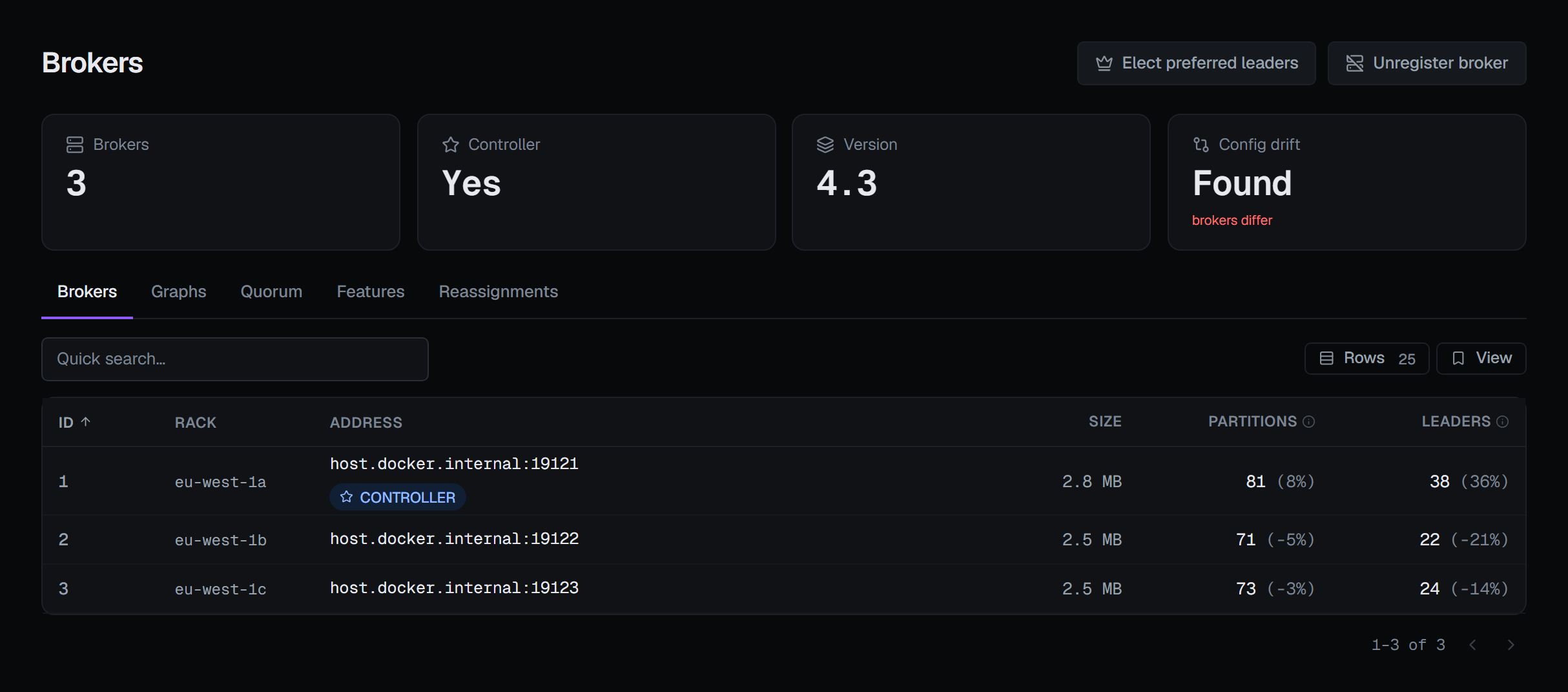

The Brokers screen of a three-broker cluster: Elect preferred leaders and Unregister broker in the header, then four tiles — 3 brokers, the controller known, version 4.3 and Config drift reading Found with 'brokers differ' — above the tabs Brokers, Graphs, Quorum, Features and Reassignments, the Brokers tab listing brokers 1, 2 and 3 in racks eu-west-1a, eu-west-1b and eu-west-1c, broker 1 carrying the Controller badge, each with its size and its partition and leader counts beside a skew percentage: broker 1 leads 38, 36% above its share, broker 2 leads 22 (−21%) and broker 3 leads 24 (−14%). — Config drift reads Found because two brokers were set up differently from the third; the skew percentages put broker 1 well above its share of leaders.

Config drift reads Found because two brokers were set up differently from the third; the skew percentages put broker 1 well above its share of leaders.

Configuration, and where each value came from

Clicking a broker opens its detail, and the Configuration tab is the part worth knowing about: the broker's effective configuration, every property, each one labelled with Kafka's own source for it — a static value from the properties file, a dynamic one set at runtime, or the built-in default.

That last column is what makes the tab useful. "The retention is 7 days" and "the retention is 7 days because nobody ever set it" are different facts, and only one of them survives a broker restart with a new config file.

Values can be read raw or humanised — byte counts as sizes, millisecond values as durations, and Kafka's several ways of spelling "no limit" all shown as Infinity. There is also a plain-text view that dumps the whole effective configuration as name=value lines, which is the form you want when you are comparing two brokers by eye or pasting into a ticket.

A property the broker lets change while it runs has a pencil on its row. One it does not is locked, and the lock says why: Kafka does not let that property change while the broker runs.

The broker modal on its Configuration tab, beside Logs and Loggers: the broker's hostname, partition, replica and under-replicated counts, then a searchable property table in Friendly or Raw display, with View as text, listing each value and its source — STATIC_BROKER_CONFIG or DEFAULT_CONFIG — and a pencil on each property that can change while the broker runs, a lock on each that cannot. — Source is the column that matters: it says whether a value was set on this broker, set cluster-wide or is simply Kafka's default.

Source is the column that matters: it says whether a value was set on this broker, set cluster-wide or is simply Kafka's default.

Changing a broker's configuration

The pencil opens the property's dialog. Level chooses where the change is made: on this broker alone, or as the Cluster-wide default that every broker inherits unless it sets its own. Change chooses between Set a value and Remove the value; it appears only where a value is set at that level, because only a value set there can be removed from it. A broker whose own value is removed falls back to the next level down: the cluster-wide default if there is one, then its properties file, then Kafka's default.

These changes are dynamic. The broker applies them while it runs, with no restart. Kafka keeps them in the cluster itself rather than in the broker's properties file, so they survive a restart, and a dynamic value takes precedence over what server.properties says. After a change the property's source says so: the value now comes from the broker's or the cluster's dynamic configuration, not from the file.

Preview comes first. The brokers check the change without writing it, and the dialog shows What would change — each property's current value beside the new one. A value Kafka will not take is refused there in its own words, and so is a property that can only be set per broker when it is sent as the cluster-wide default. Apply change stays disabled until a preview has succeeded, and applies exactly the change previewed. A sensitive property is typed into a masked field and shows as withheld in the preview.

The log.cleaner.threads dialog over broker 1's detail: Level set to Broker 1 rather than Cluster-wide default, a current value of 1 and a new value of 2, and What would change listing log.cleaner.threads going from 1 to 2, above Cancel, Preview and Apply change. — The preview has written nothing, and Apply change applies exactly the change it shows.

The preview has written nothing, and Apply change applies exactly the change it shows.

Changing broker configuration needs the permission to manage the cluster. The connection's own Kafka identity must also hold ALTER_CONFIGS on the cluster; without it, the pencils are disabled with that reason. In a read-only environment the dialog says so and Apply change stays disabled.

What is on this broker's disks

The detail's second tab, Logs, switches between two views.

Replicas lists the partition replicas this broker holds — the log directory, the topic, the partition, its offset lag and its size. The offset lag is how far this replica's log trails the partition's high watermark, so a replica that is keeping up reads 0. It is the answer to "why is this one broker so much bigger than the others", read one row at a time. It lists partition replicas, not log files: there is no server-log or GC-log browsing here.

Directories lists each log directory with its volume size, how much is free and the share used — the question the Size column cannot answer. A directory Kafka reports as failed carries an OFFLINE badge with the error it gave. Cordoned says whether the directory has been cordoned, so that no new partitions are placed on it; that is a Kafka 4.x capability, and on an older cluster the column shows a dash with the reason. A broker that does not report its volume — anything before Kafka 3.3 — shows not reported, never 0.

The broker modal's Logs tab on Directories, on a Kafka 4.3 broker: one log directory, /var/lib/kafka/data, on a 1007 GB volume with 900 GB free and 11% used, and Cordoned reading No. — The list's Size column is what the broker has written; this is how much room is left, which that column cannot say.

The list's Size column is what the broker has written; this is how much room is left, which that column cannot say.

Log levels

A broker's detail also has a Loggers tab: every logger of the running broker with its level, which you can filter by name. Choosing another level from a logger's list — FATAL, ERROR, WARN, INFO, DEBUG or TRACE — sets it on that broker at once. That is how you get debug output from one broker without restarting it. A level set here is not kept across a restart of the broker.

Broker 1's Loggers tab: a filter box, Refresh and a count of 166 loggers above a table of the broker's loggers — com.yammer.metrics.reporting.JmxReporter, kafka, kafka.authorizer.logger, kafka.controller and the kafka.coordinator loggers — each with its own level list, most at INFO and kafka.controller at TRACE. — Each level list changes that one logger on that one broker, at once and without a restart.

Each level list changes that one logger on that one broker, at once and without a restart.

The tab needs the connection's Kafka identity to be allowed to read the broker's configuration; where it is not, the tab is shown disabled with the reason. Changing a level needs the permission to manage the cluster, and ALTER_CONFIGS on the cluster for the connection's identity; without it, the level lists are disabled with that reason on hover.

Graphs

The Graphs tab draws what the list implies: partition distribution across brokers as replicas and leaders, on-disk size per broker, and cluster throughput.

Throughput is measured in messages per second, and it is derived rather than reported — BROKA samples the sum of every partition's latest offset twice and divides the difference by the elapsed time. An offset is a message count, which is why the figure is messages and not bytes, and why it appears only after the second sample has landed rather than guessing from the first.

Everything so far needs nothing but the Kafka Admin API — no agent, no exporter, no JMX.

The tab reads the cluster every 15 seconds while it is open. Each reading describes every topic and every broker's disks, so BROKA takes one reading of a cluster at a time and hands it to everyone who asks within ten seconds — several people on the Graphs tab, and the alert rules on the same cluster, cost the cluster one reading between them. The reading counts against the allowance of 30 live reads a minute per person that a consumer group's detail and the lists' Refresh also draw on.

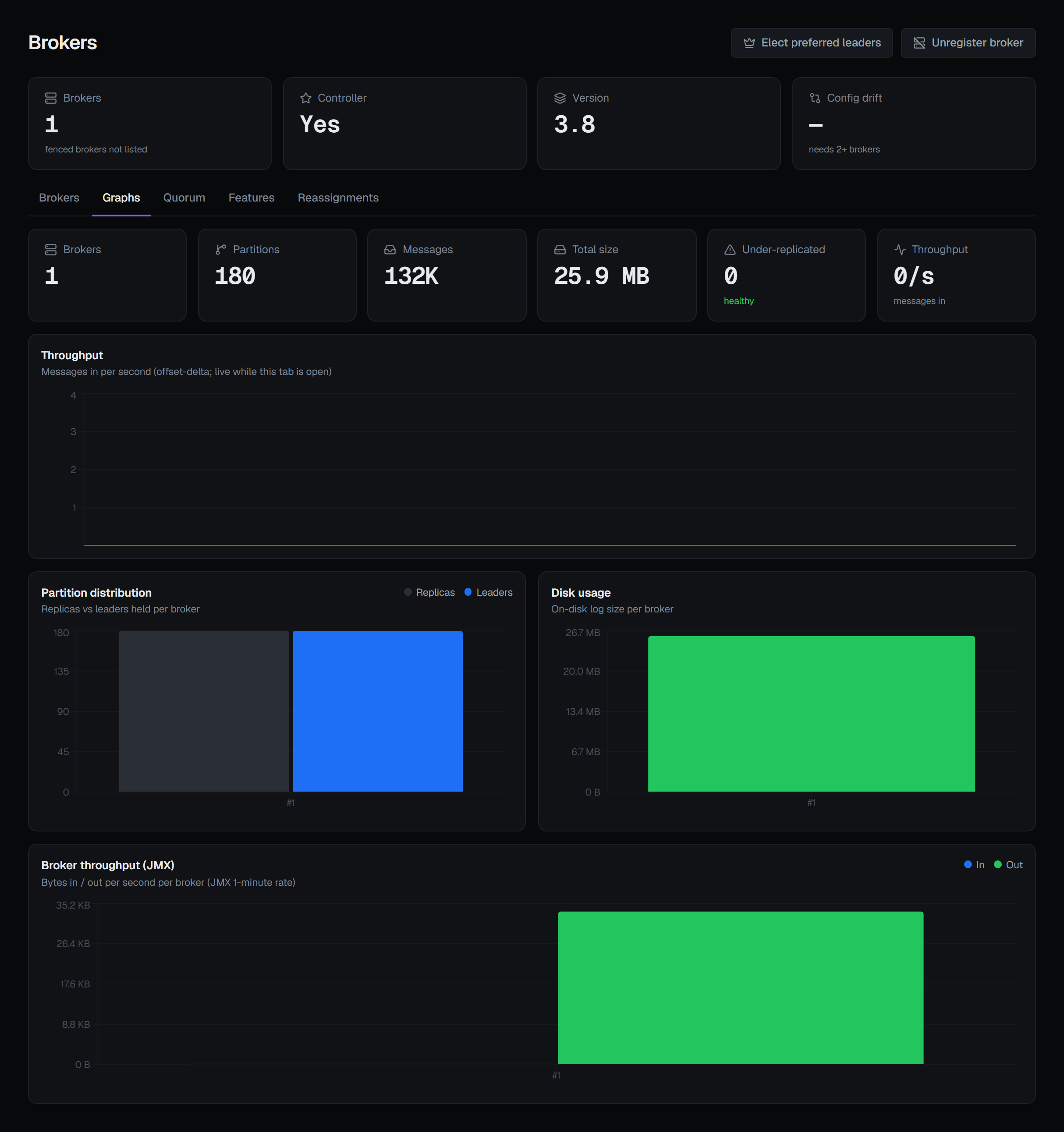

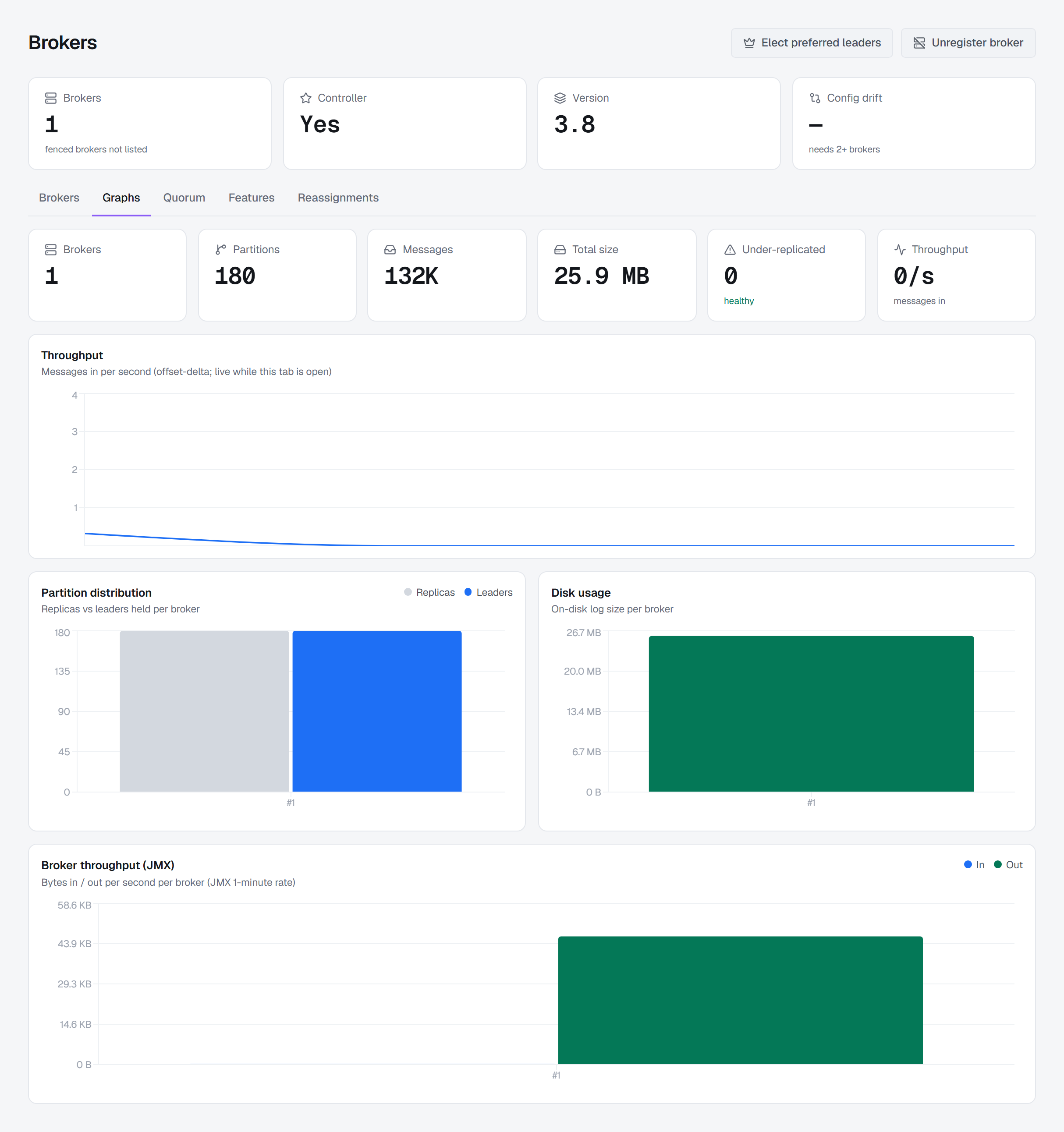

The Graphs tab, beside Brokers, Quorum, Features and Reassignments, under Elect preferred leaders and Unregister broker: counter tiles for brokers, partitions, messages, total size, under-replicated partitions and throughput, a live throughput line, bar charts of partition distribution and disk usage per broker, and the broker's JMX byte rates in and out. — Sampled while the tab is open and never stored; throughput is an offset delta, which is why it exists without JMX.

Sampled while the tab is open and never stored; throughput is an offset delta, which is why it exists without JMX.

Adding JMX

If you give the connection a JMX port, the graphs gain the broker's own byte rates in and out. BROKA connects to each broker's advertised host on that port and reads the standard metrics from every broker at once, waiting three seconds at most for all of them together, so an unreachable node cannot slow the page whatever the number of brokers. It keeps each broker's connection open between readings, and a broker that did not answer is left alone for thirty seconds before it is asked again — its byte rates are missing from the charts until then.

If the brokers' JMX agent asks for a user and password, give the connection a JMX username and JMX password as well. The password is stored encrypted with the connection's other credentials.

Without a JMX port everything else still works, and the JMX card says so plainly instead of drawing an empty chart — the card that would hold those rates tells you the metrics above it came from the Admin API and what to configure if you want more.

The connection to a metrics port is checked before it is made: BROKA refuses to connect to link-local and metadata addresses, so a mistyped or hostile broker address cannot turn the console into a probe of its own network.

What gets recorded

A configuration change is recorded with every property before and after; a sensitive property is recorded by name only. A log level change is recorded with the level before and after. A preview writes nothing and records nothing.

Nothing here is stored

There is no metrics database behind these graphs. Each reading is taken when you ask for it; the throughput line is a handful of points held in your browser tab while you watch it, and it starts fresh when you come back. BROKA measures your brokers and shows you the answer — it does not become a second system you have to operate.
